Destription
MelaTech is an open cell, melamine foam. It is lightweight, flexible, easy to handle and does not flame or emit toxic fumes when exposed to heat.
It is designed for use in thermal and acoustic insulation applications.
MelaTech is available in sheets, die-cut to size and shape or profiled. It can be faced one side or totally enclosed in a wide range of materials to meet specific performance requirements. MelaTech can be supplied with a self-adhesive backing if required.

Colour MelaTech - White
Surface finish can be spray painted to any RAL colour
Application
MelaTech is used extensively in heating, ventilation and air conditioning equipment, railway rolling stock, wall and ceiling panels, acoustic enclosures, recording studios, theatres, cinema auditoria and other leisure complexes. It is used as case linings, splitter and louvre infills in the power generation industry and in a variety of automotive applications.

Operating Temperature
MelaTech can be used at continuous operating temperatures up to 150℃

Fire Performance
Plain MelaTech complies with the Class ‘O’ requirements of the Building Regulations, when tested to BS476: Part 6: 1981 and Part 7: 1987.
MelaTech with a spray painted finish does not have a fire rating.
When coated with intumescent paint, MelaTech meets the French NF 10-702 and NFX 70-100 ’F’ classification. It achieves the French NFP 92-501 M1 rating.
MelaTech also meets various other American and European standards. Further details available on request.

Thermal Conductivity - 0.035 W/mK @ 10℃

Acoustic Performance

Product	Thickness mm	Sound Absorption Coefficient (Tested to BSEN20354:1993)
Product	Thickness mm	125 Hz	250 Hz	500 Hz	1000 Hz	2000 Hz	4000 Hz
Plain MelaTech Faced one side with:Non-woven Tissue(NWB) PVC Coated Glass Cloth(VK) Class 'O' Foil(B)	25 50 25 50 25 25	0.04 0.22 0.03 0.13 0.10 0.09	0.22 0.46 0.21 0.72 0.36 0.33	0.54 0.95 0.78 1.00 0.98 1.00	0.74 1.00 0.91 1.00 0.35 0.42	0.88 1.00 0.98 1.00 0.14 0.19	0.92 1.00 0.95 1.00 0.16 0.20

Dimensions and Density

Thickness in 1mm increments	sheet size mm	nominal density kg/m3
from 6mm to 250mm	2500x1250	9.5±1.5

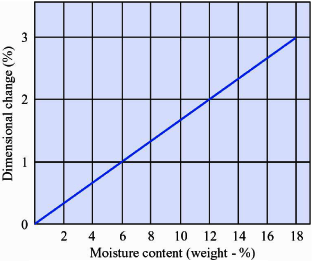

Dimensional changes may occur MelaTech in foam dependant on the relative humidity of the surrounding air. Allowances should therefore be made to overall sizes based on the anticipated moisture content of the MelaTech when in-situ.

Permanence
MelaTech is resistant to hydrolysis, alcohols, hydrocarbons, most organic solvents and dilute acids and bases.

Availability
MelaTech is available plain, or with a wide range of facings. These include:

Type of Facing	colour	fire rating	ordering reference
plain MelaTech Class “O” Foil Non Woven Tissue Polyurethane Film PVC Coated Glass Colth Tedlar PVC Spray Coating Polychlorophene Coated Glass Cloth Profiled (egg box) Plain Profiled (egg box) with PVC Spray Coating	white silver black black or white black or grey white matt black beige or green white matt black	Class”O” Class”O” Class”O” n/a Class1 n/a n/a Class”O” Class”O” n/a	AM B NWB C VK TW SB CG PR PRSB
